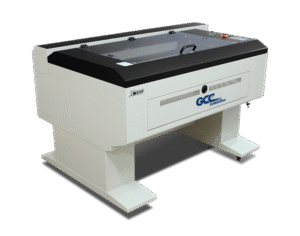

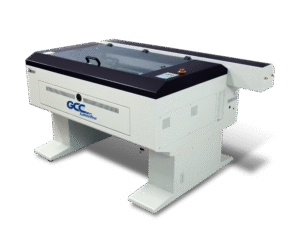

GCC X380

Reliable and powerful CO₂ laser source, ideal for mass production of both cutting and engraving
The X380 is designed to meet the needs of small and medium-sized businesses looking for an affordable yet high-performance solution. Whether you work with acrylic, wood, plastic, leather or other materials, the X380 delivers smooth, precise cuts with a smooth cut surface.

  • Economical and efficient
  • Innovative and easy to use
  • High precision
Download PDF

Technical Specification

• Workspace: 960 x 610 mm (37.8” x 24”)
• Maximum workpiece size: 990 x 635 x 165 mm
• Machine dimensions (W x D x H): 1370 x 970 x 1050 mm
• Weight: 200 kg
• Laser sources: CO₂ laser Glass tube: 80W, 100W, 120W
• Cooling: Air-cooled, optimal operating temperature 15° - 30°C
• Drive system: Stepper motor for stable and precise movement
• Maximum cutting speed: 762 mm/s (30 IPS)
• Maximum engraving speed: 2032 mm/s (80 IPS)
• Speed control: Adjustable 0.1 - 100%, up to 16 colour-linked settings per job
• Power control: Adjustable 0 - 100%, up to 16 colour-linked settings per job
• Engraving capacity: 256-level greyscale imaging for high detail
• Z-axis movement: Automatic
• Focus lenses: Standard 2.0", selectable options: 1.5", 2.5", 3.0" and 4.0"
• Resolution (DPI): 125, 250, 300, 380, 500, 600, 760, 1000, 1500
• Interface:
  • 10 Base-T Ethernet
  • USB Type A 2.0 (for storage, max 32GB, FAT file format)
  • USB Type B 2.0 (for connection to computer)
• Compatible operating system: Microsoft Windows
• Control panel: LCD panel with quick buttons for easy operation
• Safety features:
  • Laser class 1 (EN60825-1:2014, EN ISO 13849-1:2023)
  • Laser class 2 (CDRH) for CO₂ lasers
  • Machinery Directive 2006/42/EC
• Operating voltage: 80W and higher: 200-240VAC, 50/60Hz, automatic switching, max 15A
• Extraction system:
  • External extraction system required, minimum capacity 600m³/h (353 CFM)
  • Requires 2.3 kPa negative pressure
• Extraction ports:
  • Upper port: 101 mm (4”)
  • Lower port: 127 mm (5”)

Product description

GCC X380 – Cost-effective and powerful laser cutter

The GCC X380 is part of the affordable X series and offers a reliable and powerful CO₂ laser source, perfect for mass production of both cutting and engraving. The machine is equipped with GCC LaserPro's innovative and user-friendly features, making it easy to use while delivering efficient and accurate processing.

The X380 is designed to meet the needs of small and medium-sized businesses looking for an affordable but high-performance solution.

Whether you work with acrylic, wood, plastic, leather or other materials, the X380 delivers smooth and precise cuts with a smooth cutting surface. It combines high quality, reliability and ease of use, making it a smart investment for businesses looking to maximise their production.

Description

  • Economical and efficient – An affordable CO₂ laser machine for both cutting and engraving.
  • Innovative and easy to use – GCC LaserPro's smart features make operation and adjustments smooth.
  • High precision – Provides smooth cuts and high-quality engraving in various materials.
  • Low maintenance cost – Durable design and stable construction for long-term operation.

Category:

CO2 laser

Tags:

Architecture, Construction, Forestry, Hunting & Outdoor Life, Metal Industry, Sign Production, Textile, CO2 laser, Cutting, Engraving, Marking, Plastic, Textile, Wood, Large, GCC

From idea to finished product

Whether you want to mark serial numbers on industrial parts, engrave logos on plastic or create clear traceability in metal, our laser machines deliver top-class precision and durability. Here are some examples of what you can achieve when creativity meets technology.
