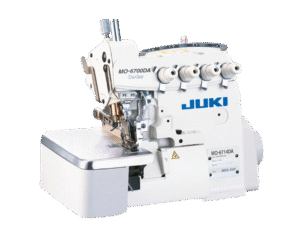

Juki MO6700DA

Juki MO-6700DA – High-speed overlock for a perfect finish
The Juki MO-6700DA is a reliable and fast overlock machine for everything from ready-to-wear clothing to technical textiles. It is available in 3- and 4-thread models with safety stitch, and delivers up to 7,000 stitches/min with clean, oil-free seams. Differential feed and optimised mechanics ensure even feeding, high precision and minimal maintenance.

  • Juki’s dry-head technology eliminates oil stains and ensures high sewing quality.
  • Maximum sewing speed of 7,000 stitches/min for increased productivity.
  • Semi-dry overlock and safety sewing machine with minimal lubrication.
Download PDF

Technical Specification

Models and stitching systems:
  • MO-6704DA: 1-needle overlock (Stitch class 504, USA)
  • MO-6714DA: 2-needle overlock (Stitch class 514, USA)
  • MO-6716DA: Safety stitch (Stitch class 516, USA)
• Maximum sewing speed: 7,000 stitches/min
• Stitch length:
  • MO-6704DA: 0.8 – 4 mm
  • MO-6714DA: 0.8 – 4 mm
  • MO-6716DA: 1.5 – 5 mm
• Overlock width:
  • MO-6704DA: 1.6 / 3.2 / 4.0 / 4.8 mm
  • MO-6714DA: 2.0 / 3.2 / 4.0 / 4.8 mm
  • MO-6716DA: 3.2 / 4.8 / 4.8+2.0 / 3.2+2.0 mm
• Differential feed (bottom feed):
  • MO-6704DA & MO-6716DA: Creasing 1:2 (max 1:4), Stretching 1:0.7 (max 1:0.6)
  • MO-6714DA: Creasing 1:2 (max 1:4), Stretching 1:0.7 (max 1:0.6)
• Needle bar stroke length: 24.5 mm
• Needle inclination: 20°
• Needle mechanism: Needle bearing method with upper/lower bushing
• Needle type: DC×27 #11 (exceptions for certain subclasses)
Presser foot and adjustments:
• Maximum presser foot lift: 7 mm (exceptions for certain subclasses)
• Maximum presser foot pressure: 63.7N (6.5 kgf)
• Stitch adjustment: Push button
• Differential feed adjustment: Lever with micro adjustment
Lubrication and maintenance:
• Lubrication: Automatic (needle bar and gripper mechanism require no lubrication)
• Lubricating oil: JUKI Machine Oil 18 (ISO VG18)
• Needle cooler: Optional
• Wire heat remover: Optional
• Micro-lift function: Standard
Other:
• Weight of the machine head: 28 kg

Product description

Juki MO-6700DA – Fast and accurate overlock machine

The Juki MO-6700DA is a high-speed overlock and safety stitching machine for clothing, sportswear and technical textiles. It is available in 3- and 4-thread overlock models as well as safety stitch variants, adapted for different materials and applications.

With a maximum speed of 7,000 stitches/min and Juki’s dry-head technology, oil stains are eliminated, resulting in clean and flawless seams. The differential feed ensures even fabric feed even with stretchy materials, while the optimised needle bar and looper mechanism reduces maintenance requirements.

Perfect for companies that require fast, accurate and trouble-free production.

Description

  • Juki’s dry-head technology eliminates oil stains and ensures high sewing quality.
  • Maximum sewing speed of 7,000 stitches/min for increased productivity.
  • Semi-dry overlock and safety sewing machine with minimal lubrication.
  • Optimised needle bar and looper mechanism for long life and easy servicing.
  • Differential feed for perfect adaptation to different materials.
  • High durability with specially treated surfaces and smart grease feed system.
  • Low maintenance requirements thanks to improved lubrication technology and grease technology.
  • Reduced vibration and noise levels for a comfortable working experience.

Complete with

  • Table
  • fully submerged mounting
  • Stand
  • SV 550 servo motor with positioning
  • small treadle
