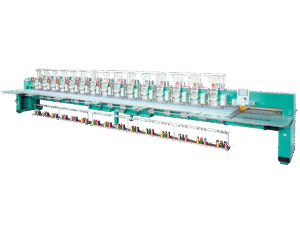

Tajima TCMX
Chenille embroidery for professional production
The TCMX series comprises Tajima’s specialist chenille embroidery machines, developed for high-speed, stable stitching and industrial operation. The series is designed for companies working with chenille, loop and chain stitches, where both aesthetic appeal and production capacity are crucial.
- Specialised chenille embroidery for industrial production
- Available as multi-head and single-head models
- Mixed Type with chenille and standard embroidery
Technical Specification
| Type of embroidery: | Chenille embroidery / Standard embroidery (Mixed Type) |
|---|---|
| Maximum speed: | Chenille embroidery up to 750 rpm, standard embroidery up to 1,000 rpm, TCMX-601 up to 800 rpm |
| Stitch length: | DST 0.1–12.1 mm, TBF 0.1–12.7 mm |
| Number of people: | Up to 23 chenille heads; Mixed Type: up to 15 pairs |
| Engine: | AC servo motor ×1, stepper motor ×2 |
| Power supply: | 3-phase 200–240 V / 350–440 V, 50/60 Hz. TCMX-601 also available in 1-phase |
| Energy consumption: | TCMX 600 series approx. 1.6–1.7 kW, TCMX-601 approx. 140 W |
| File format: | DST, TBF, compatible with Barudan and ZSK |
| Optional extras: | Coiling/Taping MT-1, Cording K-2, Sequin Unit III Twin Type, Sequin Unit IV, Position Marker and others |
Product description
Tajima TCMX – Advanced chenille machine for high-speed and flexible production
The TCMX combines Tajima’s long experience of embroidery machines with advanced technology for thread handling, colour changing and motion control. The result is consistent stitch quality even at high speeds and with complex designs.
The range includes both multi-head machines for high-volume production and a compact single-head model for smaller runs and specialised production. For businesses wishing to combine techniques, the TCMX is also available as a Mixed Type, where a chenille head is paired with a standard embroidery head on the same machine. This allows different embroidery techniques to be combined within a single design.
The machine can be fitted with a range of decorative and technical options such as coiling, taping, cording and sequins, offering great flexibility in decorative production.
Description
- Specialised chenille embroidery
- Up to 750 rpm

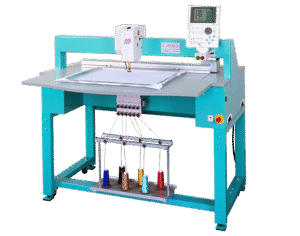

- Available as multi-head and single-head
- Mixed Type – chenille and standard embroidery
- Suitable for industrial operation
