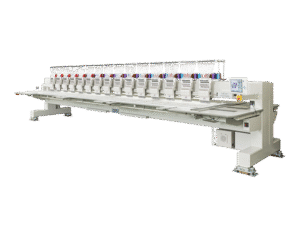

Tajima TMCR-VF
Tajima TMCR-VF – The flagship model for maximum flexibility and advanced decorative embroidery
The TMCR-VF series is Tajima’s most advanced multi-head machine and represents the company’s cutting-edge expertise in industrial embroidery. The machine has been developed for manufacturers who require maximum flexibility, stability and a wide range of decorative possibilities.
- Tajima’s most advanced multi-head technology
- DCP and FS Mode as standard
- Built for exclusive and high-volume production
Technical Specification
| Machine type: | Electronic multi-head embroidery machine |
|---|---|
| Main engine: | AC servo motor |
| X- and Y-axis motors: | AC servo motors |
| Maximum speed: | up to 1,100 rpm |
| Power supply: | 3-phase 200–240 / 380 / 415 V, 50/60 Hz and 1-phase 200–240 V |
| Energy consumption: | approx. 1.2 kW |
| FS Mode: | standard on all models |
| Digitally controlled press foot (DCP): | standard |
| Number of people: | 6–12 depending on the model |
| Embroidery area per person: | up to 1,500 × 240 mm, depending on the model |
| Factory options: | Automatic lubrication, Automatic Frame Changer, SBC, UBC II, ESQ-C, Sequin Unit IV, Seed Beads Device, i-TM |
| Optional extras available through dealers: | Multi-cording device 2, Boring device 2, Beam sensor, Position marker |
| File format: | DST (Tajima), TBF (Tajima Binary Format) |
Product description
Advanced multi-head machine for premium production and decorative effects
The TMCR-VF combines several of Tajima’s most advanced technologies in a single platform. The digitally controlled presser foot (DCP) adjusts the presser foot position according to the thickness of the fabric, ensuring stable stitching of consistent quality, even on thin, heavy and multi-layered fabrics.
FS Mode is standard and enables embroidery with soft-twisted and coarse threads that were previously difficult to handle on industrial machines. This provides greater creative freedom and improved stitch quality in demanding applications.
The machine can be equipped with an extensive range of factory and dealer options, such as intelligent thread management, sequin and bead units, the Multi Cording Device and automatic bobbin change systems. The TMCR-VF is built for high-volume production but is equally at home where extreme detail, decorative effects and technical precision are crucial.
Description
- Tajima’s most advanced multi-head machine
- Digitally controlled presser foot (DCP)
- FS Mode for coarse and soft-twisted threads
- Support for advanced decorative techniques
- Developed for premium industrial production
