PFAFF 8310-041002

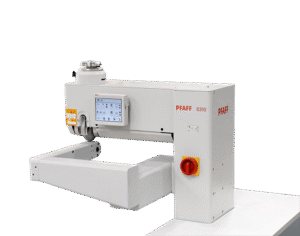

PFAFF 8310-042 – Precision welding for technical textiles
The PFAFF 8310-042 is a programmable ultrasonic machine with a bottom sonotrode, particularly suitable for filters, protective equipment and tubular materials. With electronic control, dynamic welding and a smart touch panel, it delivers high repeatability where traditional sewing is not enough.
- Welds with a bottom sonotrode – suitable for tubular parts
- Electronic control of power, pressure, speed and amplitude
- Dynamic welding – energy is adjusted according to speed
Technical Specification
| Ultrasonic frequency: | 35 kHz |
|---|---|
| Effect: | 400 W |
| Sewing width: | 1.0–10.0 mm |
| Welding/sealing speed: |
|
| Electrical connection: | 1-phase, 230 V, 50/60 Hz |
| Material support: |
|
Product description
PFAFF 8310-042 – Ultrasonic welding from below with seamless control

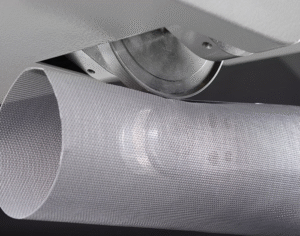

The PFAFF 8310-042 is a programmable ultrasonic welding machine with a sonotrode positioned from below – ideal for welding filter tubes, protective equipment and other tubular or technical textiles. The machine combines electronic control of all parameters with dynamic welding, high repeatability and a smart touch panel. Perfect where sewing options are not enough.
Description
- Welds with sonotrode from below – suitable for tubular parts
- Electronic control of power, pressure, speed and amplitude
- Dynamic welding – energy is adjusted according to speed
- Separate drives for sonotrode and counterholder – no distorted seams
- Touch panel with SD card and USB for easy settings management
